DESCRIPTION

Key Features

• Integrated VDSL2 Modem

  Vigor2762 Series provides DSL WAN interface and built-in VDSL modem with ADSL2/2+ fallback.

• VPN (Virtual Private Network)

  Build a secure and private tunnel from the LAN of Vigor2762 Series to the remote offices and teleworkers over the Internet. Learn more

• SSL VPN

  The VPN works through firewalls providing secure remote access to any network environment. Learn more

• VoIP (V models only)

  Vigor2762 Series can act as the SIP gateway, and its RJ-11 ports enable analog phones to make and receive VoIP calls. Setup Guide

• Bandwidth Management

  Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

• 3G/4G Backup

  The USB ports allow you to plug in a 3G/4G USB modem to take over the traffic when the primary internet connection goes down.

• Firewall & Content Filter

  Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

• Hotspot Web Portal

  Market your business and communicate with the guests while offering hospitality Wi-Fi.

• DrayDDNS

  The free DDNS service for you to access the router by a fixed hostname of your choice.

• Central AP Management

  Use the Vigor2762 Series router as a wireless controller to maintain and monitor the VigorAPs.

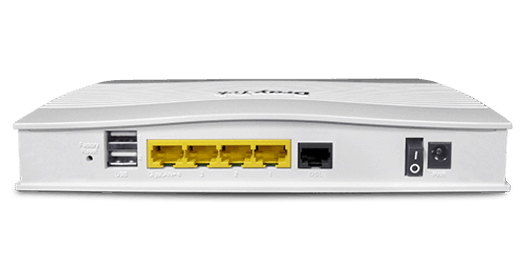

  Interface
  Fixed WAN Port	1x RJ-11 for VDSL2 or ADSL2/2+
  LAN/WAN Switchable Port	1x 10/100/1000Base-T, RJ-45 (LAN Port 4)
  Fixed LAN Port	3x 10/100/1000Base-T, RJ-45
  USB Port	2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
  2.4G WLAN	802.11n 2×2 MIMO 300Mbps (n/ac/Vac model)
  5G WLAN	802.11ac Wave 2 2×2 MIMO 867Mbps (ac/Vac model)
  FXS RJ-11	2 (Vac model)
  Performance
  NAT Throughput	400 Mbps
  NAT Throughput w/ Hardware Acceleration	900 Mbps
  IPsec VPN Performance	70 Mbps (AES 256 bits)
  SSL VPN Performance	40 Mbps
  Max. Number of NAT Sessions	50,000
  Max. Concurrent VPN Tunnels	2
  VDSL/ADSL
  VDSL Standards	ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
  VDSL2 Profile	8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
  VDSL Band Plan	997
  G.INP
  G.Vectoring
  ADSL Standards	ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)
  ADSL2 Standards	ITU-T G.992.3, G.992.3 Annex M/J
  ADSL2+ Standards	ITU-T G.992.5, G.992.5 Annex M/J
  DSL Forum	WT-114, TR-048/67, TR-100
  Internet Connection
  IPv4	PPPoE, DHCP, Static IP, PPTP/L2TP
  IPv6	PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
  Multi-VLAN/PVC
  WAN Failover
  Connection Detection	ARP, Ping
  WAN Data Budget
  Dynamic DNS
  DrayDDNS
  LAN Management
  VLAN	802.1q Tag-based, Port-based
  Max. Number of VLAN	8
  DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
  Wired 802.1x Authentication
  Port Mirroring
  Local DNS Server
  Conditional DNS Forwarding
  Hotspot Web Portal
  Hotspot Authentication	Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
  Networking
  Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP
  Policy-based Routing	Protocol, IP Address, Port, Domain
  DNS Security (DNSSEC)
  Multicast	IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
  SMB File Sharing	(Requires external storage)
  VPN
  LAN-to-LAN
  Teleworker-to-LAN
  Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN
  User Authentication	Local, RADIUS, mOTP
  IKE Authentication	Pre-Shared Key, X.509
  IPsec Authentication	SHA-1, SHA-256, MD5
  Encryption	MPPE, DES, 3DES, AES128, AES192, AES256
  Single-Armed VPN
  NAT-Traversal (NAT-T)
  Firewall & Content Filtering
  NAT	Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
  ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
  VPN Pass-Through	PPTP, L2TP, IPsec
  IP-based Firewall Policy
  Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
  DoS Attack Defense
  Spoofing Defense
  Bandwidth Management
  IP-based Bandwidth Limit
  IP-based Session Limit
  QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port, Application
  VoIP Prioritization
  Wireless LAN (wireless model)
  Number of SSID	4 per radio band
  Security	WEP, WPA, WPA2, WPS
  Authentication	Pre-Shared Key, 802.1x
  AirTime Fairness
  Band Steering	(dual-band model)
  WMM
  WDS	Bridge, Repeater
  Access Control	Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
  VoIP Gateway (V model)
  Protocol	SIP, RTP/RTCP, ZRTP
  SIP Registrars	12
  Dial Plan	Phone Book, Digit Map, Call Barring, Regional
  Call Features	Call Waiting, Call Transfer, Scheduled DND, Hotline
  Voice Codec	G.711 A/u law, G.726, G.729 A/B
  Caller ID	FSK_ETSI, FSK_BELLCORE, DTMF
  Management
  Local Service	HTTP, HTTPS, Telnet, SSH, FTP, TR-069
  Config File Export & Import
  Config File Compatibility	Vigor2760 Series
  Firmware Upgrade	TFTP, HTTP, TR-069
  2-Level Administration Privilege
  Access Control	Access List, Brute Force Protection
  Notification Alert	SMS, E-mail
  SNMP	v1, v2c, v3
  Syslog
  Managed by VigorACS
  Central AP Management	2 VigorAP
  Physical
  Power Supply	DC 12V @ 2A
  Max. Power Consumption	20.4 watts (Vac model)
  Dimension	207mm x 131mm x 42mm
  Weight	450g (Vac model)
  Operating Temperature	0 to 45°C
  Storage Temperature	-25 to 70°C
  Operating Humidity (non-condensing)	10 to 90%

  All specifications are subject to change without notice.



  Model	2.4GHz Wi-Fi	5GHz Wi-Fi	Wi-Fi Antenna	VoIP Gateway	FXS RJ-11
  Vigor2762	–	–	–	–	–
  Vigor2762n		–	2x 2.4GHz (2dBi)	–	–
  Vigor2762ac			2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz)	–	–
  Vigor2762Vac			2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz)		2
