vigorlte-200n-lte-wi-fi-router-with-vpn
Networking products
AED 1,689.00 AED 1,750.00 Per Unit
HIGHLIGHTS

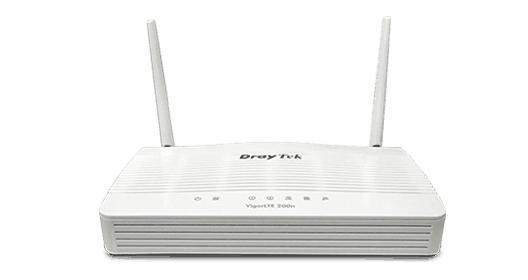

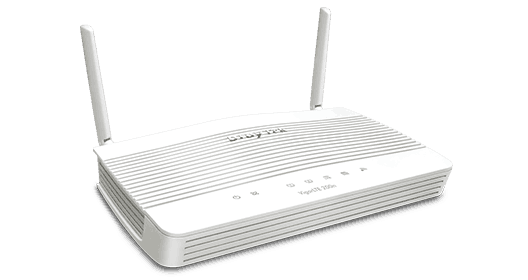

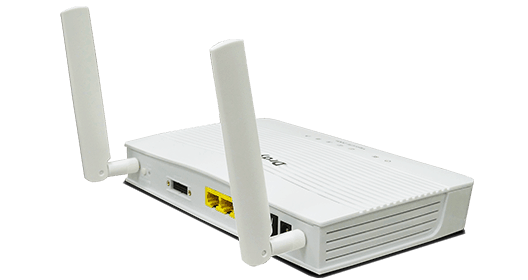

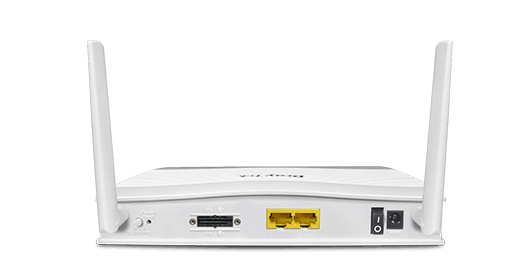

Stay Connected Throughout the World VigorLTE 200n is an LTE broadband Wi-Fi router for smart home or small business network of around 30 hosts. The primary WAN interface is the LTE mobile broadband, ideal for sites without fixed lines infrastructure or locations that needs temporary Internet access. It offers Dual-SIM slots for failover to increase coverage and reduce roaming costs. Alternatively, one of its 2x Gigabit Ethernet LAN ports can be switched to WAN interface and get internet access from a fixed-line broadband connection. VigorLTE 200n has two Ethernet ports and built-in 802.11n Wi-Fi for LAN access. The router can handle two concurrent VPN tunnels to link to the main offices or provides remote management access for Network Admins. It also offers the flexibility for network management, including Port Forwarding, SPI Firewall, Content Filtering, Bandwidth Management, QoS, and more.
Qty
ADD
DESCRIPTION
| Interface | |
|---|---|
| LAN/WAN Switchable Port | 1x 10/100/1000Base-TX Ethernet, RJ-45 (LAN P2) |
| Fixed LAN Port | 1x 10/100/1000Base-TX Ethernet, RJ-45 |
| SIM Slot | 2x Standard-Sized |
| LTE Antenna | 2x Detachable |
| 2.4G WLAN | 802.11n 2×2 MIMO 300Mbps |
| Wi-Fi Antenna | 2x Internal, Gain: 2 dBi |
| Capacity | |
| NAT Throughput | 300 Mbps |
| IPsec VPN Performance | 50 Mbps (AES 256 bits) |
| SSL VPN Performance | 25 Mbps |
| Max. Number of NAT Sessions | 30,000 |
| Max. Concurrent VPN Tunnels | 2 |
| Max. Concurrent SSL VPN | 2 |
| LTE | |
| LTE Category | 4 |
| Max. Data Rate | 150 Mbps downlink, 50 Mbps uplink |
| FDD Band | 1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz) |
| WCDMA (3G) Band | 1, 8 |
| *For other band availability, please contact us | |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| LTE WAN Bridge | DHCP Client |
| Multi-VLAN/PVC | |
| WAN Failover | |
| Connection Detection | ARP, Ping |
| Dynamic DNS | |
| DrayDDNS | |
| WAN Budget | |
| LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, RIPv2 |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave |
| VPN | |
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IPsec XAuth |
| User Authentication | Local, RADIUS, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, Web Features, Web Category*, DNS Keyword (*: subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
| Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port |
| Wireless LAN (n model) | |
| Number of SSID | 4 per radio band |
| Security | WEP, WPA, WPA2, WPS |
| Authentication | Pre-Shared Key, 802.1x |
| WDS | Bridge, Repeater |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| WMM | |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH, TR-069, SMS Sending & Recieving |
| Config File Export & Import | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v2, v2c, v3 |
| Syslog | |
| Central AP Management | 2 VigorAP |
| Physical | |
| Power Supply | DC 12V @ 1A |
| Max. Power Consumption | 12 watts |
| Dimension | 207mm x 131mm x 42mm |
| Weight | 380g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate | |
All specifications are subject to change without notice.
